Description
Save money with our product bundles

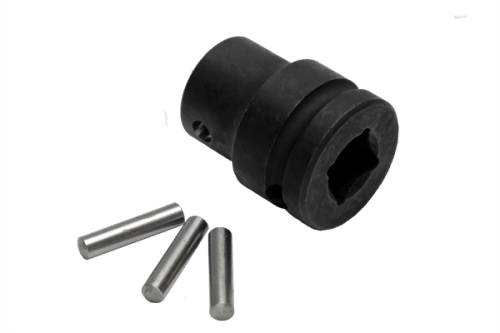

TR24-HD + impact nut 1/2 inch
TR24-HD + 1/2 inch impact socket + wedge pocket
TR24-HD + 1/2 inch impact socket + wedge pocket + spray grease

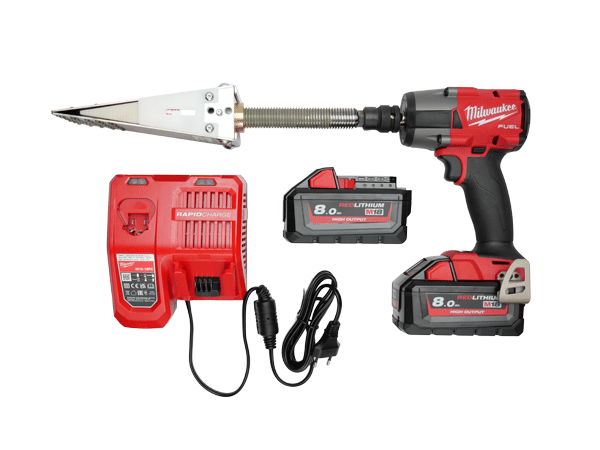

TR24-HD Set 5.5Ah + torque support
Would you like a little more? – The TR24-HD for heavy-duty applications!

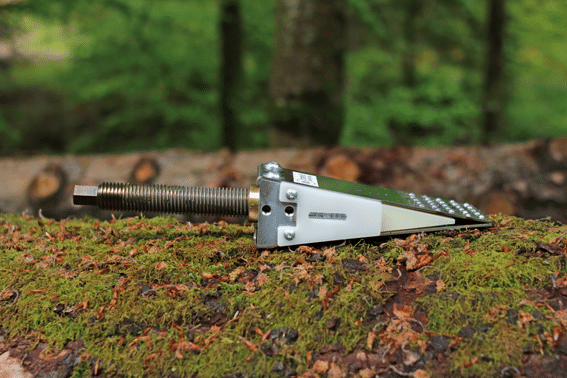

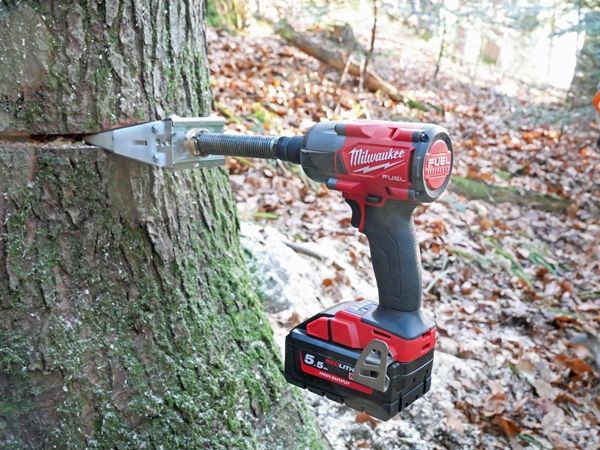

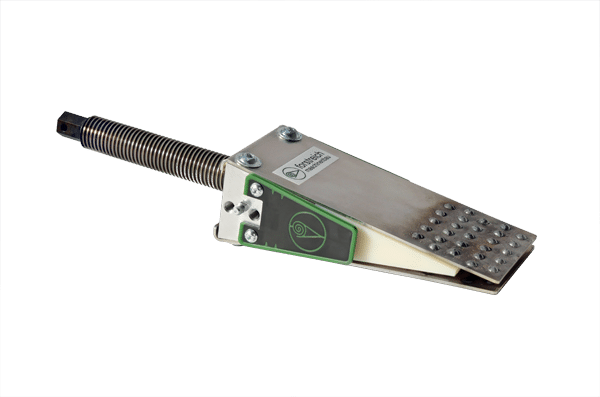

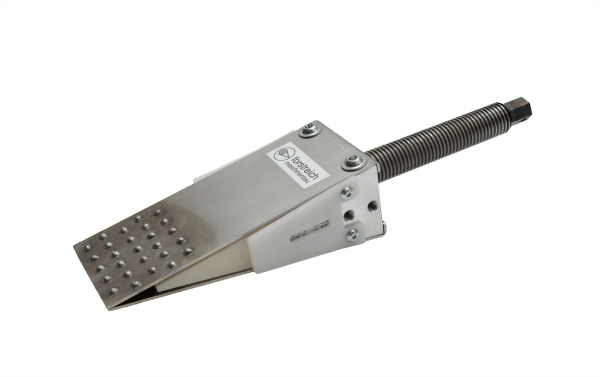

When it comes to maximum performance and reliability, the TR24-HD is the perfect mechanical felling wedge for heavy-duty tasks. Thanks to its finer-threaded spindle, the TR24-HD generates an impressive thrust of 20 tonnes, making it ideal for demanding applications. Despite its enormous power, the TR24-HD weighs just 2.1 kg – barely any more than the TR24-AQ. With a stroke height of 45 mm, this mechanical felling wedge is ideally suited to medium-to-heavy timber.
Power meets precision

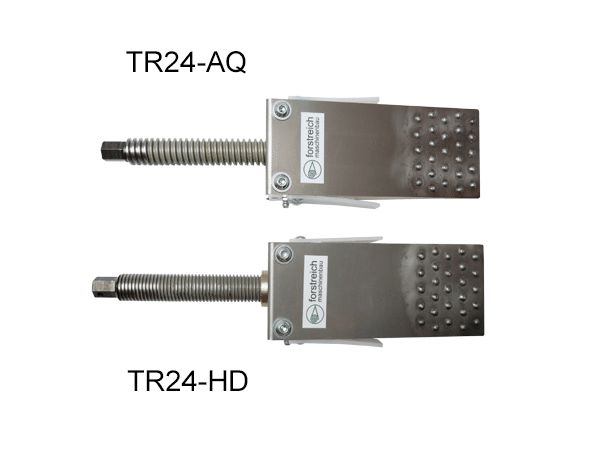

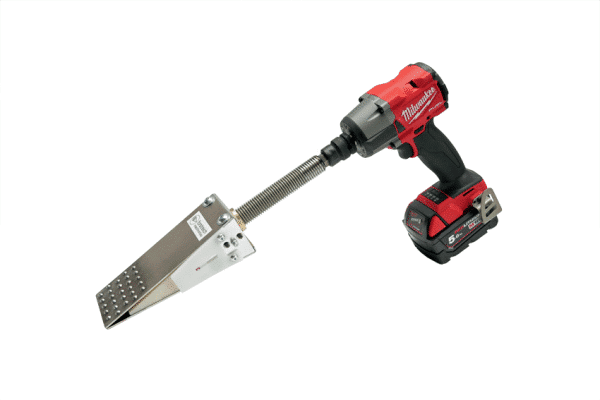

Whilst the TR24-AQ operates slightly faster, the TR24-HD stands out for its exceptional power. For the best balance of power and weight, we recommend the Milwaukee impact wrench with 745 Nm of torque. Our TR24-HD sets include the powerful, high-quality Milwaukee M18 FHIW2P12 impact wrench, which can be firmly and securely attached to the TR24-HD using its locking pin, creating a secure unit that is comfortable to carry.
Special features of the TR24-HD felling wedge
- KWF-Profi certification: Confirms the highest standards for professional use.
- 18° plastic pressure wedge: Compact, short and easy to replace should the wedge become damaged.
- Sturdy 2 mm spring steel plates: With an 80 mm wide contact surface, they offer optimum stability in the wood.
- Robust spindle and bearings: Designed for the toughest applications, ensuring that the TR24-HD works reliably even in extreme situations.
- Advantages of the set: The M18 FMTIW2P12 impact wrench with safety pin is included in our Milwaukee sets, allowing you to securely connect the felling wedge to the wrench, which is not possible with the M18 FMTIW2F12 with snap ring.
Technical data for mechanical felling wedge TR24-HD
| manufacture | Made in the Black Forest | Max. pressure force | 20 tonnes |
| Weight solo | 2.1 kg | Stroke/revolution | 3 mm |
| Length | 355 mm | Lifting height | 45 mm |
| Width | 80 mm | Spindle diameter | 24 mm |
| Height | 73 mm | Torque impact wrench | 300 Nm – 1,000 Nm |
Order your TR24-HD now
Invest in maximum performance and reliability for your most demanding forestry work. The TR24-HD is your partner for heavy-duty tasks.
