Description

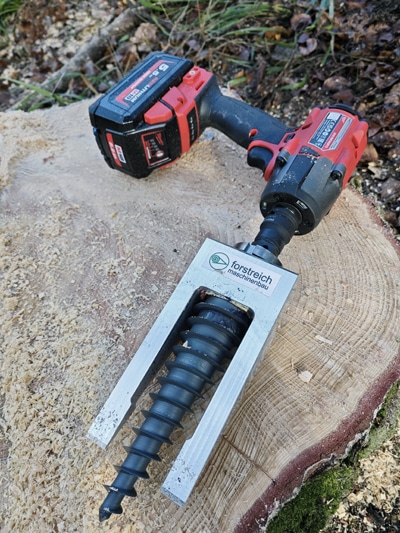

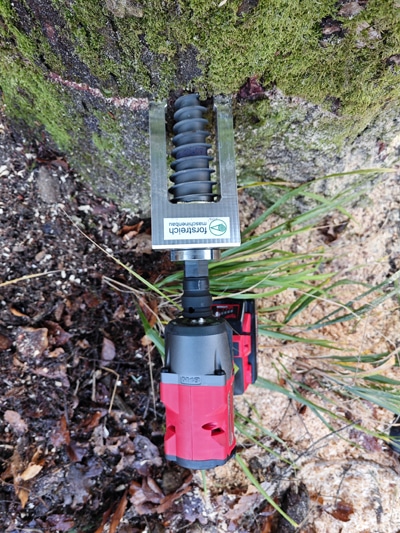

The Spiral Cone SK50 – Handy, Compact & Powerful
Thanks to the self-retracting spiral of the spiral cone, the saw cut does not need to be widened, making it optimal for the safe felling of weaker wood and small tree diameters. Weighing only 1.7 kg and with a maximum lift height of 55 mm, it delivers an impressive pressure force of 4-5 tons into the tree.
For connecting with the impact wrench, two hardened hex sockets with sizes 16 mm and 22 mm are available with a bore. This allows the SK50 spiral cone to be easily combined with our other felling wedges and used, for example, for repositioning.
The symmetrical shape of the spiral reliably prevents the SK50 from working itself out of the wood. A large-sized, lubricatable roller bearing ensures efficient power transmission and contributes to a long service life.
A handy, practical helper for daily work – for more enjoyment in the forest!
Technical Data of the Spiral Cone SK50:
- Retracts into the wood via a threaded spiral
- Max. pressure force: 4-5 tons
- Weight: 1.7 kg (without accessories)
- Lift per rotation: 12 mm
- Maximum lift height: 55 mm
- Dimensions: 240 x 80 x 55 mm
- Hex socket for impact sockets: 16 mm and 22 mm
- Max. torque size 16 mm: 1,000 Nm
- Max. torque size 22 mm: 1,627 Nm
- KWF professional certification
Delivery does not include impact socket. The appropriate impact sockets are identical to the impact sockets of our mechanical felling wedges TR30-AQ and TR24-HD. You can find all impact sockets here.
