Felling wedge TR24-AQ

578,99 1.229,00  inkl. Mwst.

Includes 19% Mwst.
Free Shipping


Description

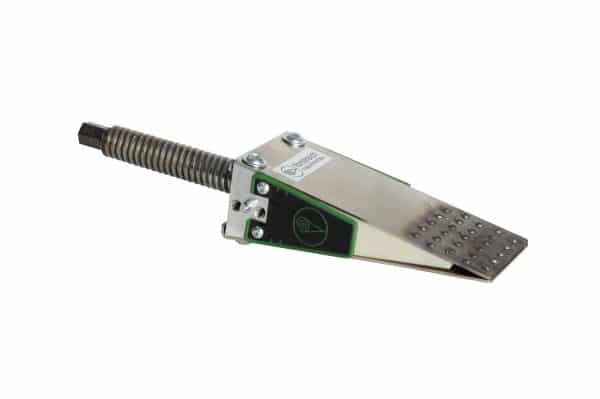

The TR24-AQ is a mechanical felling wedge that was specially designed for use with smaller impact wrenches. With a weight of only 1,9 kg, a lifting height of 4 cm and a pressure force of approx. 12 tons, it is ideally suited for cutting medium-strength wood for the harvester or on steep slopes.

Features:

  • Patented spindle arrangement: this allows us to install a very robust 24mm spindle and still keep the weight low.
  • Pressure wedge plastic with 18°: compact and easy to change if you do saw into it.
  • Sturdy spring steel plates with 80mm wide contact surface in the wood
  • The spindle with low pitch creates an optimal force transmission into the pressure wedge, the angle of the pressure wedge becomes negligible: e.g. the wedge angle 18° to 10° creates arithmetically a force difference of 10%, the pitch of the spindle e.g. pitch 5 to pitch 8 creates a difference in force of over 40%.

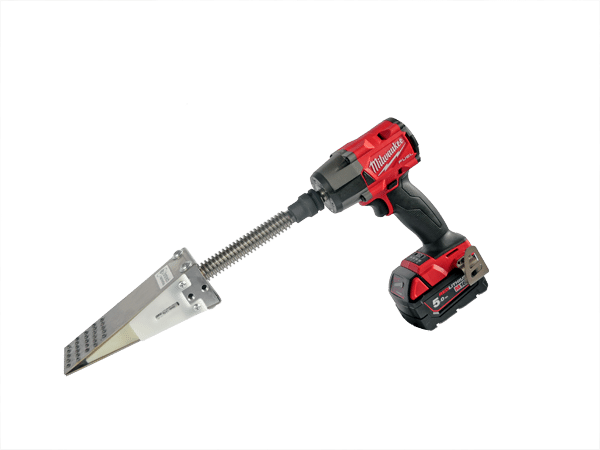

For optimal performance and weight we recommend to operate the TR24-AQ with the Milwaukee M18FMTIW2F/P impact wrench with 745Nm . The TR24-AQ weighs in the set with the Milwaukee M18FMTIW2F and a 18V 5 Ah battery a total of only 4.5 kg and can therefore be carried comfortably on the forestry belt.

With KWF professional marking!



!Please note: A delivery of batteries or sets with batteries is not possible by air freight & outside Europe!

Additional information

Weight N/A
Ausführung

TR24-AQ Set 5.0 PIN 18V, TR24-AQ 4.0, TR24-AQ 6.0, TR24-AQ solo
