Description

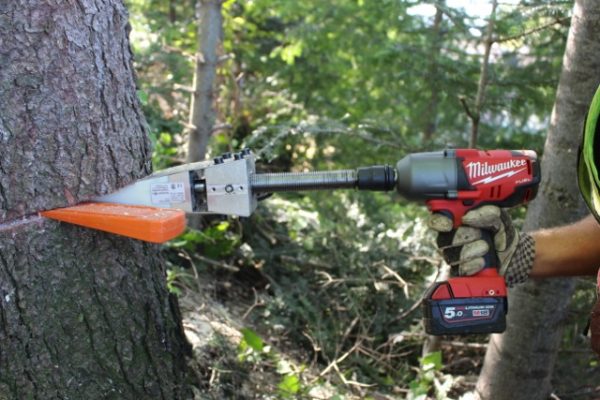

The TR30-AQ mechanical felling wedge is the next step in the development of technical felling aids! The TR30-AQ was specially designed for use with cordless impact wrenches, but a standard ratchet can still be used. The aim of the development was to create a particularly robust yet lightweight felling wedge, as the cordless impact wrench adds additional weight. The result is the TR30-AQ with the proven components of the mechanical felling wedge plus the Milwaukee M18 cordless impact wrench. The Milwaukee M18 ONEFHIWF34 is characterised by good weight distribution, high torque and a very robust design. In our numerous practical tests, the Milwaukee was clearly ahead!

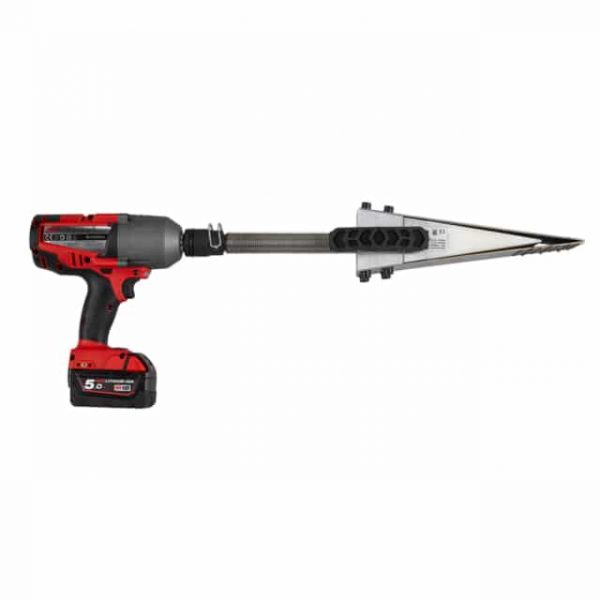

The TR30-AQ incl. Milwaukee M18ONEFHIWF34 cordless impact wrench, 5.0 Ah battery & impact socket comes as a set with a system weight of just 7.9 kg. The impact socket is machined so that the impact wrench and the TR30-AQ can be permanently connected, meaning that only one ‘package’ needs to be carried, leaving the second hand and belt free.
Technical data mechanical felling wedge TR30-AQ 5.0 Set:
max. pressure force: 25 tonnes
Weight: 4.2 kg (TR30-AQ solo)
System weight: 7.9 kg (TR30-AQ, impact wrench, 1x battery 5.0, impact nut)
System weight: 8.3 kg (TR30-AQ, impact wrench, 1x 8.0 Ah battery, impact socket)
Length: 495 mm, width: 80 mm, height: 100 mm
Lifting height: 60 mm

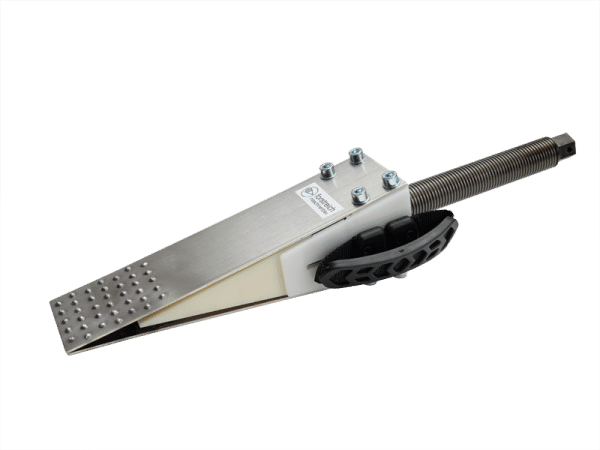

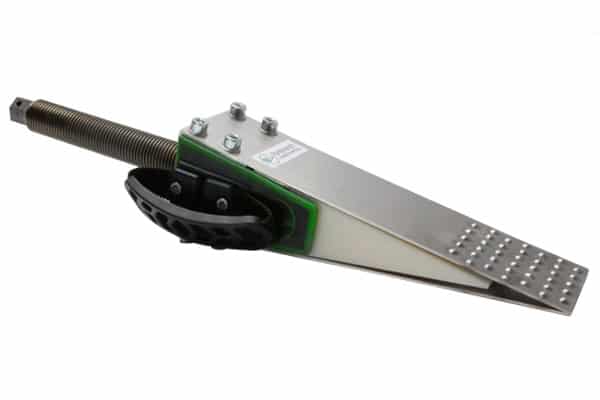

Scope of delivery TR30-AQ solo:
Item number 007-1000
Mechanical felling wedge TR30-AQ completely ready for use
KWF-Profi and CE marking
Scope of delivery TR30-AQ Set 5.0 / Set 8.0 / 12.0:
Mechanical felling wedge TR30-AQ completely ready for use
Milwaukee M18 ONEFHIWF34-0X cordless impact wrench
High-performance impact wrench with 1,627 Nm max. torque
2 pcs. Lithium-ion batteries 5.0 Ah (item number 005-1000)
2 pcs. Lithium-ion batteries 8.0 Ah (article number 005-1002)
2 pcs. Lithium-ion batteries 12.0 Ah (article number 005-1003)
1 charger

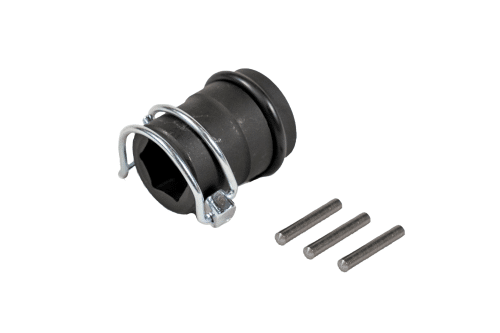

High-strength impact socket with 2 holes
Folding cotter pin for secure connection of felling wedge and impact wrench
Operating instructions
KWF-Profi and CE labelling
